Seri :
Outdoor Lighting
Gövde / Materyal :
Işık Kaynağı :
3535 / 5050 / 2835
Güç Tüketimi :
Işık Renkleri :
Renksel Geri Verim :
Çalışma Gerilimi :
Işık Açısı 1 :
Işık Açısı 2 :
Işık Açısı 3 :
IP Koruma Sınıfı :
IP66
Montaj Tipi :
Gövde Boya Tipi :
Menşei :
Turkey
Garanti :
Ek Özellikler :

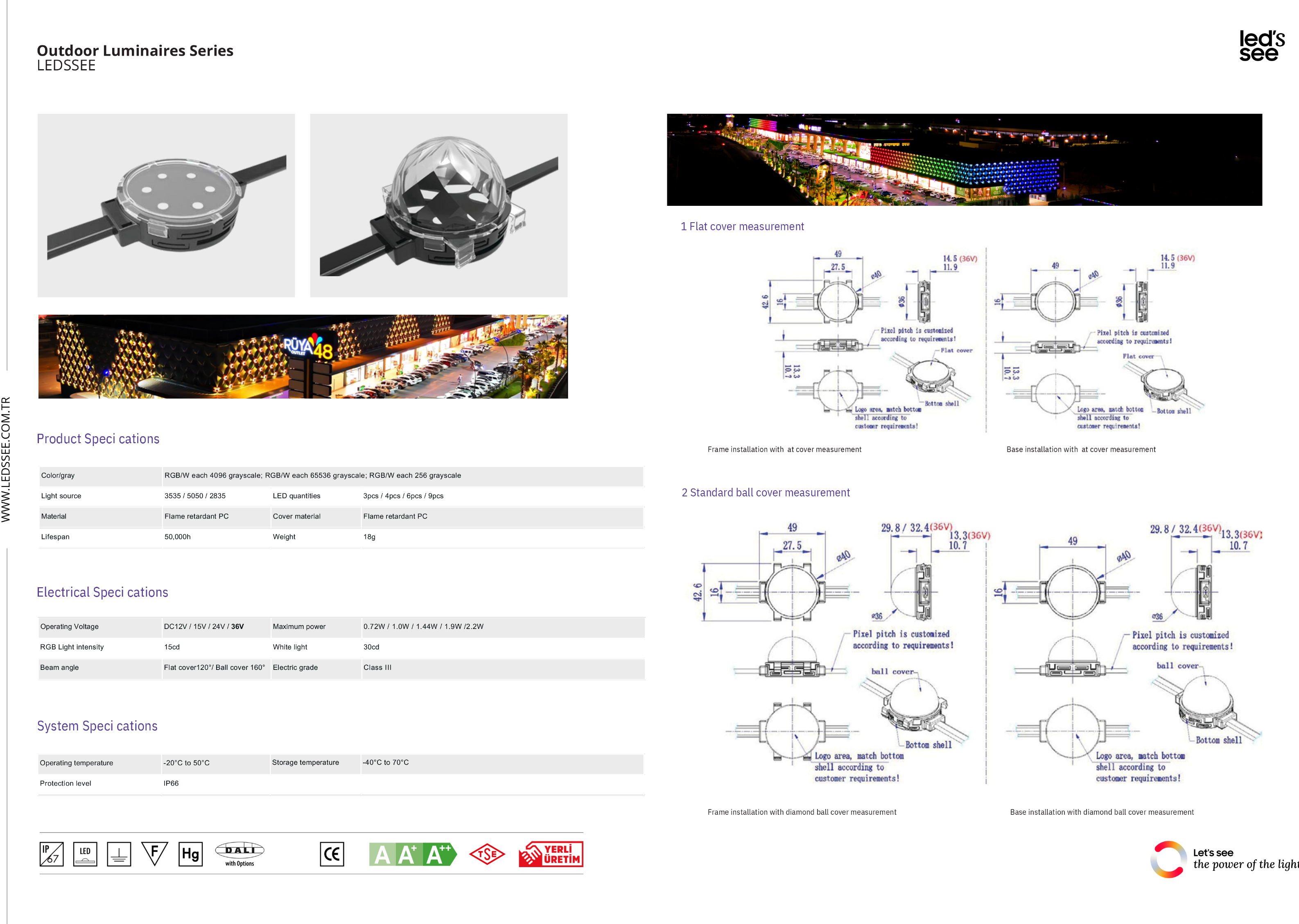

— Product Specifications —
Color/gray: RGB/W each 4096 grayscale; RGB/W each 65536 grayscale; RGB/W each 256 grayscale
Light source: 3535 / 5050 / 2835
LED quantities: 3pcs / 4pcs / 6pcs / 9pcs
Material: Flame retardant PC
Cover material: Flame retardant PC
Lifespan: 50,000h
Weight: 18g
— Electrical Specifications —
Operating Voltage: DC12V / 15V / 24V / 36V
Maximum power: 0.72W / 1.0W / 1.44W / 1.9W / 2.2W
RGB Light intensity: 15cd
White light: 30cd
Beam angle: Flat cover 120° / Ball cover 160°
Electric grade: Class III
— System Specifications —
Operating temperature: -20°C to 50°C
Storage temperature: -40°C to 70°C
Protection level: IP66
Color/gray: RGB/W each 4096 grayscale; RGB/W each 65536 grayscale; RGB/W each 256 grayscale
Light source: 3535 / 5050 / 2835
LED quantities: 3pcs / 4pcs / 6pcs / 9pcs
Material: Flame retardant PC
Cover material: Flame retardant PC
Lifespan: 50,000h
Weight: 18g
— Electrical Specifications —
Operating Voltage: DC12V / 15V / 24V / 36V
Maximum power: 0.72W / 1.0W / 1.44W / 1.9W / 2.2W
RGB Light intensity: 15cd
White light: 30cd
Beam angle: Flat cover 120° / Ball cover 160°
Electric grade: Class III
— System Specifications —
Operating temperature: -20°C to 50°C
Storage temperature: -40°C to 70°C
Protection level: IP66
KOD / SOKET
WATT
SÜRÜCÜ AKIMI
LÜMEN
ÜRÜN ÖLÇÜSÜ
Flat cover: 49, 27.5, ø40, ø36, 42.6, 16, 14.5(36V), 11.9, 13.3, 10.1, Standard ball cover: 49, 27.5, ø40, ø36, 42.6, 16, 29.8/32.4(36V), 13.3(36V), 10.7
MONTAJ KESİM ÖLÇÜSÜ
